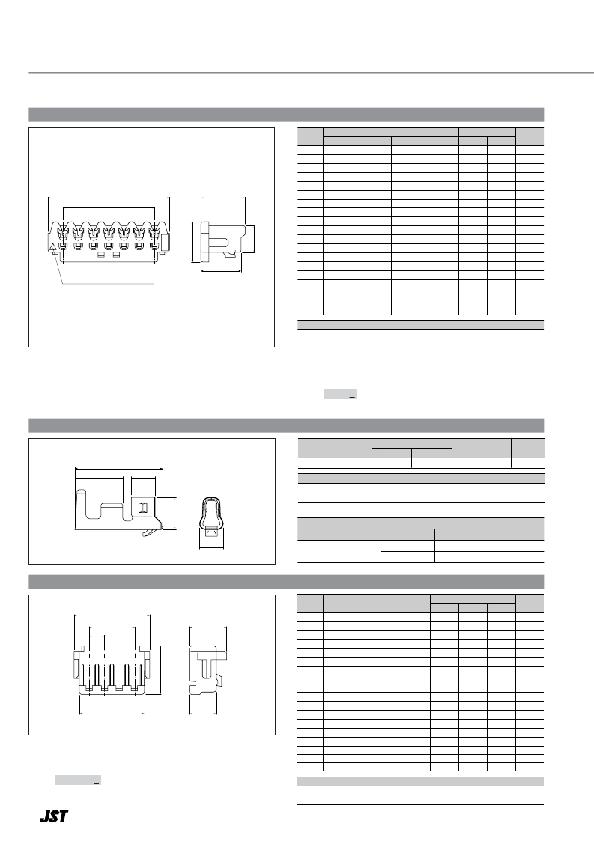

CZ FAMILY SERIES ／ CZ ? CZW ? CZH ? CZHW ? TZ ? TZW
CZ connector receptacle
Circuits
Gray
Model No.
Yellow
Dimensions (mm)
A B
Q'ty / box
2
3
4
5
6
02CZ-6H
03CZ-6H
04CZ-6H
05CZ-6H
06CZ-6H
02CZ-6Y
03CZ-6Y
04CZ-6Y
05CZ-6Y
06CZ-6Y
1.5
3.0
4.5
6.0
7.5
4.5
6.0
7.5
9.0
10.5
2,000
2,000
2,000
2,000
2,000
B
A
4.4
7
8
9
10
11
12
13
14
07CZ-6H
08CZ-6H
09CZ-6H
10CZ-6H
11CZ-6H
12CZ-6H
13CZ-6H
14CZ-6H
07CZ-6Y
08CZ-6Y
09CZ-6Y
10CZ-6Y
11CZ-6Y
12CZ-6Y
13CZ-6Y
14CZ-6Y
9.0
10.5
12.0
13.5
15.0
16.5
18.0
19.5
12.0
13.5
15.0
16.5
18.0
19.5
21.0
22.5
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
Circuit No.1(Triangle-mark indicates.)
4.1
15
16
17
18
19
20
15CZ-6H
16CZ-6H
17CZ-6H
18CZ-6H
19CZ-6H
20CZ-6H
15CZ-6Y
16CZ-6Y
17CZ-6Y
18CZ-6Y
19CZ-6Y
20CZ-6Y
21.0
22.5
24.0
25.5
27.0
28.5
24.0
25.5
27.0
28.5
30.0
31.5
1,000
1,000
1,000
1,000
1,000
1,000
Material and Finish
Contact: Phosphor bronze, tin-plated (reflow treatment)
Housing: Glass-filled PA 66, UL94V-0
RoHS compliance
<For reference> As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
02CZ-6H -
Y…yellow H…natural (grayish color)
CZH connector contact
Model No.
Applicable wire
mm 2 AWG #
Insulation O.D. (mm)
Q'ty /
reel
4.05
SCZH-002T-P0.5
0.08～0.13
28～26
0.8～1.1
13,000
2.2
1.1
RoHS compliance
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
Contact
Crimping
machine Crimp applicator
Applicator
Dies
Crimp applicator with dies
1.1
SCZH-002T-P0.5 AP-K2N
MKS-L
?
MK/SCZH-002-05 APLMK SCZH002-05
?? ?
CZH connector housing
B
Circuits
2
Model No.
CZHR-02V-S
A B C
Dimensions(mm)
1.5 4.5 3.5
Q'ty /
box
1,000
1.5
A
C
3.7
2.7
3
4
5
6
7
8
9
10
11
12
13
14
15
CZHR-03V-S
CZHR-04V-S
CZHR-05V-S
CZHR-06V-S
CZHR-07V-S
CZHR-08V-S
CZHR-09V-S
CZHR-10V-S
CZHR-11V-S
CZHR-12V-S
CZHR-13V-S
CZHR-14V-S
CZHR-15V-S
3.0
4.5
6.0
7.5
9.0
10.5
12.0
13.5
15.0
16.5
18.0
19.5
21.0
6.0
7.5
9.0
10.5
12.0
13.5
15.0
16.5
18.0
19.5
21.0
22.5
24.0
5.0
6.5
8.0
9.5
11.0
12.5
14.0
15.5
17.0
18.5
20.0
21.5
23.0
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
RoHS compliance
<For reference> As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
16
17
19
20
CZHR-16V-S
CZHR-17V-S
CZHR-19V-S
CZHR-20V-S
22.5
24.0
27.0
28.5
25.5
27.0
30.0
31.5
24.5
26.0
29.0
30.5
1,000
1,000
1,000
1,000
ex.
3
CZHR-02V-S -
S…natural (white)
K…black H…gray Y…yellow
Material
PBT, UL94V-0, natural (white)
